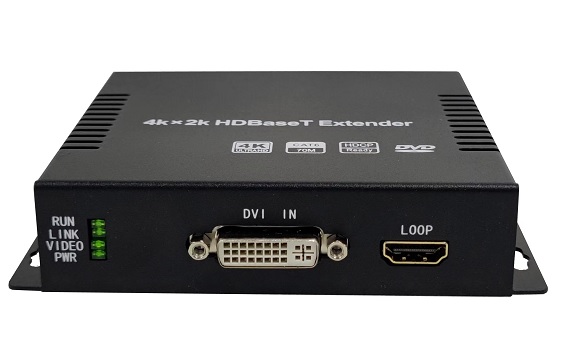

HDBaseT DVI extender with HDMI output

HDBaseT DVI extender with HDMI output,HDBaseT DVI Cable extender (1920*1200 transmission 100 meters)

HDBaseT DVI extender, support the transmitter HDMI loop, support bidirectional infrared control signal transmission; Support bidirectional RS-232 signal transmission; Support 1920×1200 resolution transmission,70M, 100 M, 150M optional;

  • Product Introduction
  • HDBaseT DVI Cable extender (1920*1200  transmission 100 meters)

    HDBaseT DVI extender with HDMI output



    HDBaseT DVI extender, support the transmitter HDMI loop, support bidirectional infrared control signal transmission; Support bidirectional RS-232 signal transmission; Support 1920×1200 resolution transmission70M, 100 M, 150M optional;



    1. Product introduction

    HDBaseT DVI extender with HDMI output, can convert DVI signal to standard HDBaseT signal and then extend DVI signal to 150 meters through Cat6. This product supports bidirectional infrared control signal and RS-232 transmission signal. And the transmitter side with HDMI output function, through the two-way infrared interface can easily control the signal source device or display device from the remote end. Supports a maximum resolution of 1920 x 1200. This product can be widely used in video conference system, multimedia signal broadcast, large screen display and many other fields.



    2. Functional features

    Support DVI 1.0, HDMI 1.4B and HDCP 1.4;

    HDBaseT special technology, support direct connection with projector and other display equipment;

    Video resolution up to 1920×1200, compatible with 1920*1080P60;

    Transmission distance through CAT6 network cable up to 150 meters;

    Support bidirectional infrared control signal transmission;

    Support bidirectional RS-232 signal transmission;

    Supports 1 channel HDMI video loop out;

    Support 1920×1200 resolution transmission of 70 m, 100 m, 150 m optional;



    3. Function Description

    Specifications for

    Specification is compatible with

    DVI 1.0, HDMI 1.4B



    Video bandwidth

    165MHz

    Video resolution

    Up to 1,920 ×1200, 1,366 ×768, 1,280 ×720,

    Color space

    RGB, YUV4:4:4, YUV 4:2:2

    Color depth

    8-bit

    HDMI audio format

    LPCM2/5.1/7.1 CH, Dolby * Digital and DTS 5.1, Dolby *Digital, Dolby TrueHD,DTS-HD Master Audio,Dolby Atmos, DTS:X

    The connection

    The emitter



    Input: 1 x DVI

    1 x IR INPUT [3.5 mm Stereo Mini - jack]

    1×RS-232[Phoenix terminal]

    Output: 1×HDBaseT Out[RJ45]

    1 x HDMI Type A[19-PIN female port]

    1 x IR OUTPUT [3.5 mm Stereo Mini - jack]

    The receiver



    Input: 1×HDBaseT In[RJ45]

    1 x IR INPUT [3.5 mm Stereo Mini - jack]

    1×RS-232[Phoenix terminal]

    Output: 1 x DVI

    1 x IR OUTPUT [3.5 mm Stereo Mini - jack]

    The fuselage

    The shell

    Metal case

    color

    black

    size

    100mm(length)×100mm(width)×25mm(thickness)

    The weight of the

    350 g



    Power supply

    Input: AC100-240V 50/60Hz

    Output: DC 12V/1A

    The power consumption

    5W

    Operating temperature

    0 ~ 50 ° C



    Storage temperature

    - 20 ° ~ 60 ° C
