AV Product

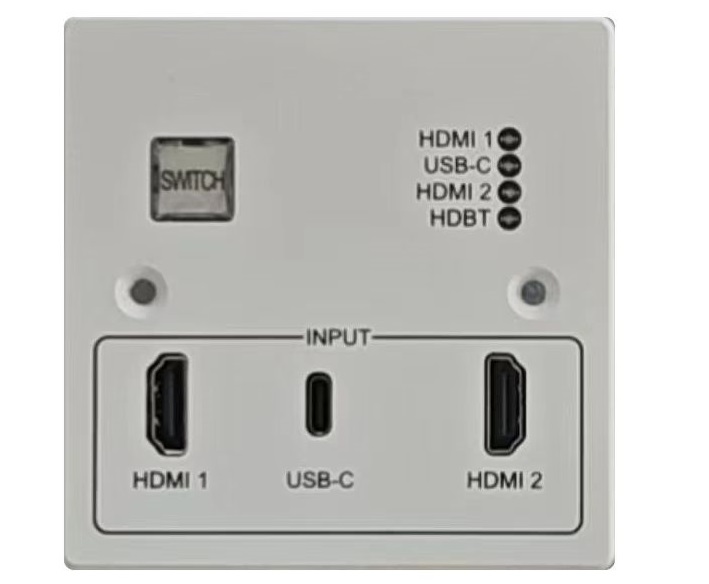

86Panel 2*HDMI+USB-C wall-plug transmitter

86Panel 2*HDMI+USB-C wall-plug transmitter

86Panel 2*HDMI+USB-C wall-plug transmitter

  • Product Introduction
  • 1. Product Introduction

    86Panel 2-ch HDMI+USB-C wall-plug transmitter, developed and produced by Beijing HCSTCOM Co. Ltd, adopts a hybrid input design and integrates the latest HDBaseT technology. It converts 2ch HDMI and 1ch USB-C video signals into standard HDBaseT signals output. It supports Power over Cable (PoC), enabling it to draw power from a matrix or other HDBaseT devices.It’s equipped with a DC12V power interface for independent power supply and supports RS232 control. It can transmit HDMI and USB-C signals with resolutions of 4K Ultra HD, 1920×1080 at 60Hz, and 3D over distances of up to 70 meters or 100 meters.


    This product is extensively applied in various scenarios such as video conferencing, large - screen display and multimedia display control systems, high - end image display projects, medical imaging display and projection systems. It is well-suited for long-distance video and information transmission systems in airports, railway stations, sports centers, hotels, and more.


    2. Product Features


    -Supports 2ch HDMI and 1ch USB-C video signals transmission over 70/100m;

    -Integrates the latest HDBaseT technology;

    -HDMI supports 4K UHD (3840×2160),1080P@60Hz (1920×1080),3D, and a color depth of 36 bits;

    -Support 4K signal 40m,1080P@60Hz signal 70/100m;

    -Can be used with hybrid matrix or other HDBaseT devices;

    -Supports bidirectional RS232 data transmission;

    -Support PoC power supply, no need an external power source;

    -Signal switching via panel buttons or host computer software;

    -Standard 86x86mm panel wall-plug design, can match with floor box and table box;

    -LED indicators to display the switching status.


    3. Technical Parameters

    Description

    86 Panel 2*HDMI+USB-C Wall-Plug Transmitter

    Input

    2×HDMI, 1xUSB-C, 1xRS232

    Output

    1×HDBT

    Standard Protocol

    HDMI1.4

    Resolution

    480i --1080p up to 4K@30Hz(4:4:4), 4K@60Hz(4:2:0)

    Transmission Distance

    70/100Moptional

    Size

    86*86*40mm

    Weight

    260g

    Power Supply

    DC:12V,1A

    Power Consumption

    8W

    Operating Temperature

    -10℃ ~55℃

    Storage Temperature

    ﹣20℃ ~60℃
